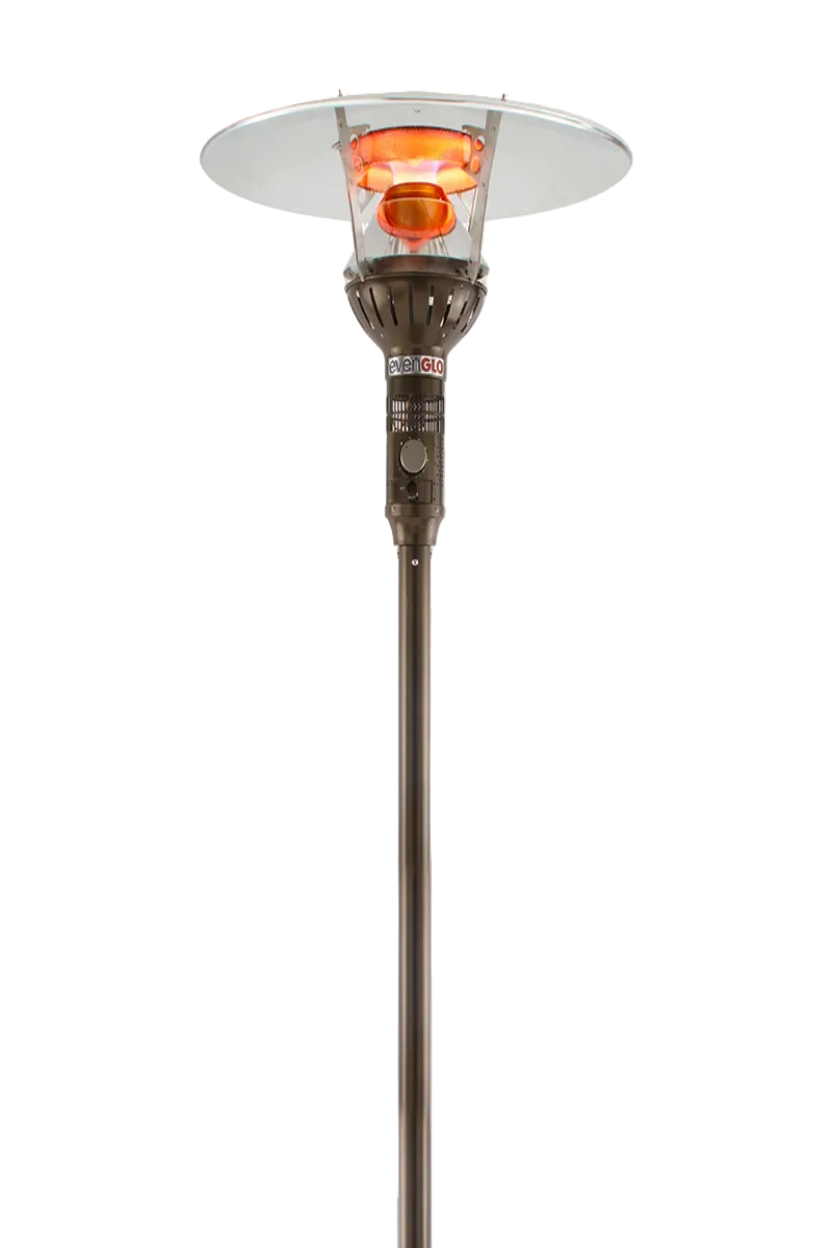

IR Energy - EvenGlo Fixed Patio Heater – Floor Mounted Radiant Heater (53,000 BTU)

Experience permanent outdoor comfort with the EvenGlo Fixed Patio Heater — a commercial-grade radiant heating solution designed for upscale residential and hospitality spaces.

Built for fixed installation, this model delivers powerful 53,000 BTU radiant heat, warming people and surfaces directly rather than the surrounding air. Its clean, architectural design integrates seamlessly into patios, outdoor dining areas, and luxury backyard environments.

With both propane and natural gas options, as well as manual or 24V ignition systems, this heater offers flexibility for a wide range of installations. A welded mounting flange ensures secure, professional-grade installation for long-term performance.

Available in two pole height options to suit your space:

• Standard: 63” pole
• Tall (“T” models): 75” pole

• 53,000 BTU commercial-grade heating
• Fixed, floor-mounted installation
• Radiant heat technology (wind-resistant performance)
• Propane or natural gas options
• Manual or 24V direct ignition available
• Welded flange for secure mounting
• Designed for residential & hospitality applications

• Heat Output:
  • Natural Gas:
    • High: 53,000 BTU/hr
    • Low: 46,000 BTU/hr
  • Propane (LPG):
    • High: 47,000 BTU/hr
    • Low: 40,000 BTU/hr
• Fuel Options: Natural Gas or Propane
• Gas Manifold Pressure:
  • Natural Gas: 5.5" W.C.
  • Propane:
    • High: 9.8" W.C.
    • Low: 7.0" W.C.
• Gas Supply Pressure:
  • Natural Gas:
    • Min: 6.5" W.C.
    • Max: 14.0" W.C.
  • Propane:
    • Min: 11.0" W.C.
    • Max: 14.0" W.C.
• Electrical Requirements: 24 Volts, 0.8 Amps
• Ignition System:
  • Direct spark ignition
  • 3-try lockout with automatic re-light
• Construction:
  • Fixed (permanent mount) design
  • Commercial-grade durability

Dimensions

• Overall Height: 89.7"
• Reflector Diameter: 39.5"
• Heater Width (Top): 22"
• Base Mount Width: 7.875"
• Mounting Plate Bolt Pattern: 6.3" spacing

Finishes

• 304 Stainless Steel
• Black Powder Coat

• Bronze

Warranty

• 3 Years: 316 Stainless Steel Emitter
• 1 Year: All other components

Additional Notes

• Designed for permanent installation
• Installation must follow manufacturer specifications
• Intended for outdoor use
• Specifications subject to manufacturer approval

Click the image to view full specifications, installation instructions, and operation details.
